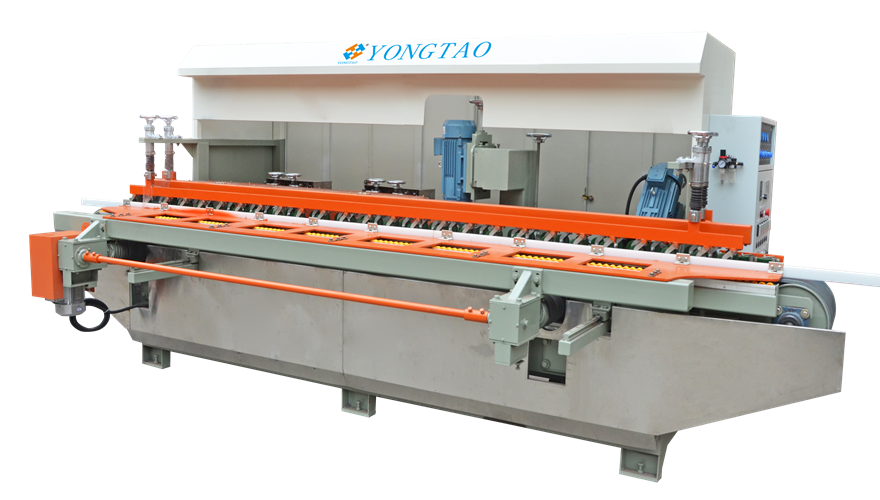

YSKP-1200 3+4 Stone Groove Cutting And Polishing Machine
Yongtao Stone Groove Cutting And Polishing Machine,3-head slotting cutting,4-head slotting polishing, processing marble slotting with polishing,fast processing speed
Product introduction
YSKP-1200 3+4 stone groove cutting and polishing machine is the latest product of Yongtao machinery, the granite cutting and polishing machine is specially designed by client’s requirement for stone grooving and polishing. The machine can process marble, artificial stone, granite etc materials. There are 3 heads in the front: the first head make bevel cutting, the second head make vertically cutting, and the third head make horizontally cutting.The direction of slab put is that the smooth surface will be downward. The cut off material will automatically falling down by gravity. And then the remaining material will be grooved and polished. The polishing parts adopt air pressure structure, which can ensure the material stable transmission. Due to this, the machine need a air compressor to assist. The machine can do grooving and polishing in one time.The polished product are brightness, don’t need to make waxing. It is very popular in stone groove processing factory.
Marble Slotting Polishing Machine:
Technical Parameter of YSKP-1200 3+4 Stone Groove Cutting And Polishing Machine
We have the Marble polishing machine manufacturer and granite polishing machine supplier. And we have Marble polisher for sale.
Machine specifications
| Conveyor motor | 2.2kw |
|---|---|
| Cutting head motor | 5.5kw*3pcs |
| Numbers of cutting head | 3头 |
| Diameter of blade | Φ250*60 |
| Numbers of polishing head | 4pcs |
| Diameter of polishing head | Φ150*30 |
| Polishing head motor | 3kw*4 |
| Conveyor belt width | 350mm |
| Maxi processing width | 1000mm |
| Processing speed | 1-3m |
| Processing thickness | 30-60mm |
| Size of machine | 4.5*1.9*1.7m |
| Total power | 30.70kw |
| Weight | 2000kg |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
