YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter
A good wet tile cutter machine can raise productivity immensely and quicken production times. Read on to find out more about these amazing machines.
Product introduction

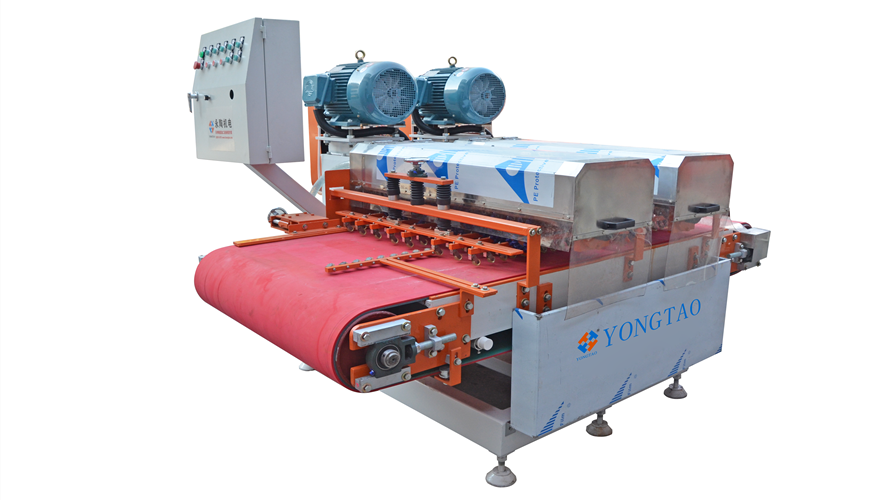

Description of YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter
YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter. This is two spindle Ceramic Cutting Machine,it is specialized to cut tile strips.It can install 7-8 blades on each spindle,which can cut the tile into several strips in one time.For example, cut 800x800mm tiles,it can install 7pcs of blades,and cut into 10pcs of 98x100 strips.It is suit for producing ceramic tile skirting.
Automatic Wet Tile Cutting Machine:
Features of YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter
(1) Well-known brand electric motor and bearing produce high quality.
(2) Twice cutting can assure high speed and less edge-crack.
(3) V-guide of the conveyor belt keeps the belt running with high precision.
(4) Spindle bearing block cooled by water-cooling equipment assures long time continuous cutting without being overheated.
Parameter of YTQZ-B/2-1000 Two Spindle Automatic Wet Tile Cutter
We can provide you with diamond tile cutter, floor and decor tile cutter and best tile cutter for subway tile.
Machine specifications
| Nos. Of cutting head | 2pc |
|---|---|
| Width of conveyor belt | 1020mm |
| Dia. Of blade | Φ150-300mm*60mm |
| Main motor power | 18.5kw |
| Conveyor motor | 2.2kw |
| Speed of conveyor | 0.8-4.0m/min |
| Lifter motor | 0.75kw |
| Cutting width | 20-800mm |
| Max. Cutting thickness | 20mm |
| Total power | 40.7kw |
| Size of machine | 2.5*1.98*1.63m |
| Weight | About 2000kg |
| Water consumption | 400L/min |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
